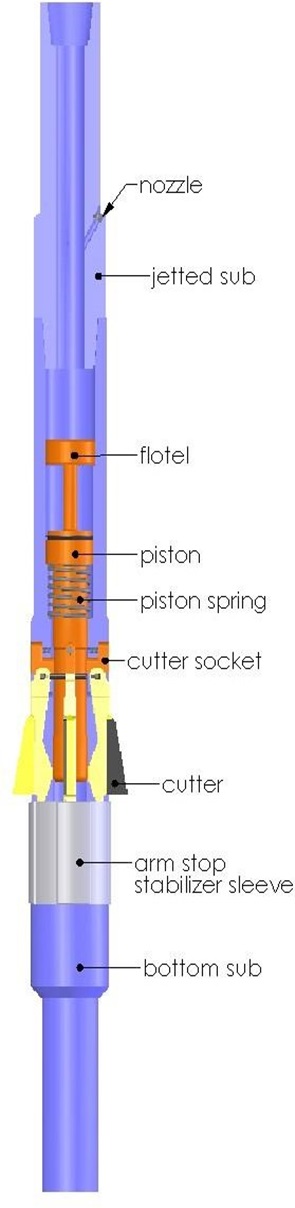

Section mill is of rugged and simple design. One set of cutters, tungsten carbide inserts arms, work together to minimize wear and maximize efficient cutting. Consistent with the complete tool design, arm removal and replacement are uncomplicated. Cutters can be redressed after use to reduce operational costs.
An important feature is the Flotel Assembly which, when the arms are fully extended, will reflect a drop in pump pressure; the operator then adds weight to continue milling the section from the casing.
SERIES | CASING SIZE | BODY OD |
4500 | 5 1/2” | 4.5” |
5700 | 7” – 7 5/8 | 5.7” |
8200 | 9 5/8” – 10 3/4” | 8.2” |
11700 | 13 3/8” – 16” | 11.7” |
Optional jetting nozzles may be added to the Top Sub; these nozzles assist the removal of mill cuttings from the cutting face resulting in greater efficiency. Any requirement for jetting nozzles must be stated on order.
Piston nozzle and jetted sub nozzle can be exchanged with other sizes nozzles to set up the tools for different pump rates.
Prices for complete assembly including one set of cutters, contact our sales team for terms and conditions.
SERIES | PRICE US DOLLAR |
4500 | REQUEST |
5700 | REQUEST |
8200 | REQUEST |
11700 | REQUEST |
SERIES | ADDITIONAL SET CUTTER |
4500 | REQUEST |
5700 | REQUEST |
8200 | REQUEST |
11700 | REQUEST |
Hydraulic pipe cutters are designed to be robust, reliable, and easy to operate while gigivinghe the operator maximum control over the operation.
The cutter is hydraulically actuated through an arrangement consisting of piston and flotel assemblies. A drop of pressure created when the cutting knives have reached a pre-set diameter advises the operator that the casing has to be through.
Various cutter lengths are available depending on the diameter of the casing sing to be cut. Hydraulic pressure is used to activate the three- tungsten carbide-dressing gutters. Single and multiple strings of casing are easy to cut.
The cutter may be used below the single retrieving system. A detail of the system is available to contact our sales team.
BODY OD | CASING SIZE |
3 1/8” | 4 1/2”- 5”- 5 1/2” |
3 5/8” | 4 1/2”- 5” – 5 1/2” – 7” |
4 1/2” | 5 1/2″- 7.” |
5 3/4” | 7”- 7 5/8”- 8 5/8”- 9 5/8”- 10 3/4″- 13 3/8” |
8 1/4” | 9 5/8”- 10 3/4″- 13 3/8”- 16”- 18 5/8”- 20”- 30”- 36” |
11 3/4” | 13 3/8”- 16”- 18 5/8”- 20”- 30”- 36”- 42” |
Prices for complete assembly including one set of cutters, contact our sales team for terms and conditions.
BODY OD | PRICE US DOLLAR |
3 1/8” D/W cutter for 4 1/2″ CSG | REQUEST |
3 5/8” D/W cutter for 4 1/2” CSG | REQUEST |
4 1/2″ D/W cutter for 5 1/2” CSG | REQUEST |
5 3/4″ D/W cutter for 7” CSG | REQUEST |
8 1/4″ D/W cutter for 9 5/8 CSG | REQUEST |
11 3/4” D/W cutter for 13 3/8 CSG | REQUEST |
Straight pull Releasable Packer Retrieve tool featuring a repeatable straight pull release for pulling out of a stuck packer. Designed to safely recover the production packers without slick bore tailpipe assemblies, the packer retriever is configured so that the grapple can be positioned below the bottom of the packer before beginning to mill the packer using a mill head or wash over shoe. This ensures that the grapple will catch the packer if it drops on completion of the milling operation.
Sizes available; 6 5/8” -7”- 7 5/8” and 9 5/8” production packers Ranging from 3” to 6” packer bore.
Prices for complete assembly including one catcher, contact our sales team for terms and conditions.
BODY OD | CONNECTION | CATCH RANGE |
3 1/8” | 2 3/8 REG B | 3 1/4” – 4.” |
3 3/4″ | 2 7/8 REG B | 4” – 6” |
4 1/4” | 3 ½ REG B | 6” |
Contact our sales team for terms and conditions.
BODY OD | PRICE US DOLLAR |
3 1/8” D/W 3 1/4″ CATCHER | REQUEST |
3 3/4″ D/W 4” CATCHER
| REQUEST |
The heavy-duty casing spears are robust and adaptable tools that can be dressed to recover a variety of casing sizes. Recovery is accomplished through tried-and-tested grapple mechanisms that achieve a positive grip on the ID before pulling out of the hole.
Heavy duty casing spear use and easy to operate, ¼ turn to right or left put the spear in catch and release position.
Should the spear need to be backed off from the fish at any point, lower the string +/- 1 FT, rotate the string ¼, turn to the right,t, and POOH the spear.
SERIES | CASING SIZES |
7000 | 7 TRU 7 5/8 |
9000 | 9 5/8” TRU 10 ¾.” |
13000 | 13 3/8” TRU 16.” |
18000 | 18 5/8” TRU 36.” |
Price on request, contact our sales team for terms and conditions.
Single Trip Retrieval System comprises a rotatable spear used together with a Hydraulic Casing Cutter, which has been designed for use both offshore and onshore to affect the speedy removal of Multi-String Casings in one trip.
However Well Abandonment operations, the system can be adapted to cut and remove subsea wellheads with guide bases in a single trip.
This manual deals specifically with the rotatable spear, and details of the casing cutter are available; contact our sales team.
SERIES | CASING SIZES |
9000 | 9 5/8” TRU 10 ¾.” |
13000 | 13 3/8” TRU 16.” |
18000 | 18 5/8” TRU 36.” |
Price on request, contact our sales team for terms and conditions.
Spear stop sub. They were designed to run in combination with BOWEN ITCO spears. The spear can be easily released by shearing the pins with downforce. Shear pins can be pre-set between 10 – 50 KLBS allowing the fishing jar to be re-cocked during jarring operation.
TUBING / CASING | SPEAR OD | CONNECTION |
3 1/2″- 4.” | 2 13/16”- 3 1/4″ | 2 3/8 REG P X 2 7/8 REG B |
4 ½”- 5.” | 3 5/8” | 2 3/8 IF P X 3 1/2 IF B |
5 1/2″-5 3/4” | 4 1/32” | 2 7/8 REG P X 3 1/2 IF B |
6 5/8”- 7.” 7 5/8 | 5 11/16” | 3 1/2 P X 4 ½ IF B |
9 5/8” TRU 20” | 8 1/4″ | 6 5/8 REG P X B |
For prices for complete asse, by including one stop plate, contact our sales team for terms and conditions.
SPEAR OD | PRICE US DOLLAR |
2 13/16”- 3 1/4″ | REQUEST |
3 5/8” | REQUEST |
4 1/32” | REQUEST |
5 11/16” | REQUEST |
8 1/4″ | REQUEST |
Integrally bladed junk mill. An efficient milling action allows the rapid removal: of packers, tubing, liner hangers Etc.
The blades of the mill feature sintered tungsten carbide inserts backed up by tungsten carbide. If a sintered tungsten carbide insert becomes damaged, the TC provides an authoritarian backup cutting structure until the insert regains its cutting ability.
SIZE AVAILABLE | BODY OD | CONNECTION |
3 3/4” | 3 1/8” | 2 3/8 REG PIN |
3 7/8” TRU 4 1/2” | 3 3/4″ | 2 7/8 REG PIN |
4 1/2″ TRU 5.” | 4 1/4″ | 3 ½ REG PIN |
5” TRU 6 1/2″ | 4 3/4” | 3 ½ REG PIN |
6 1/2” TRU 8 7/8 | 6 1/4″ | 4 ½ REG PIN |
8 7/8 TRU 12 ¾.” | 8” | 6 5/8 REG PIN |
ABOVE 12 ¾ ON REQUEST |
|
|
Contact our sales team for terms and conditions.
SIZE AVAILABLE | PRICE US DOLLAR |
3 3/4” | REQUEST |
3 7/8” TRU 4 1/2” | REQUEST |
4 1/2″ TRU 5.” | REQUEST |
5” TRU 6 1/2″ | REQUEST |
6 1/2” TRU 8 7/8 | REQUEST |
8 7/8 TRU 12 ¾.” | REQUEST |
ABOVE 12 ¾ | REQUEST |
Integral flat bottom mill. An efficient milling action allows removal of bit cone, junk, fish neck dress off,
The flat bottom mill is often used as an economical solution for limited milling work like scraper run, clean-up run, drift run Etc.
SIZE AVAILABLE | BODY OD | CONNECTION |
3 3/4” | 3 1/8” | 2 3/8 REG PIN |
3 7/8” TRU 4 1/2” | 3 3/4″ | 2 7/8 REG PIN |
4 1/2″ TRU 5.” | 4 1/4″ | 3 ½ REG PIN |
5” TRU 6 1/2″ | 4 3/4” | 3 ½ REG PIN |
6 1/2” TRU 8 7/8 | 6 1/4″ | 4 ½ REG PIN |
8 7/8 TRU 12 ¾.” | 8” | 6 5/8 REG PIN |
ABOVE 12 ¾ ON REQUEST |
|
|
Contact our sales team for terms and conditions.
SIZE AVAILABLE | PRICE US DOLLAR |
3 3/4” | REQUEST |
3 7/8” TRU 4 1/2” | REQUEST |
4 1/2″ TRU 5.” | REQUEST |
5” TRU 6 1/2″ | REQUEST |
6 1/2” TRU 8 7/8 | REQUEST |
8 7/8 TRU 12 ¾.” | REQUEST |
ABOVE 12 ¾ | REQUEST |
Taper mills are dressed with tungsten carbide ally to provide a durable milling action.
The objective of the taper feature is to allow entry into flattened, split, or generally misshapen casing and progressively mill it out to its original contour.
SIZE AVAILABLE | BODY OD | CONNECTION |
3 3/4” | 3 1/8” | 2 3/8 REG PIN |
3 7/8” TRU 4 1/2” | 3 3/4″ | 2 7/8 REG PIN |
4 1/2″ TRU 5.” | 4 1/4″ | 3 ½ REG PIN |
5” TRU 6 1/2″ | 4 3/4” | 3 ½ REG PIN |
6 1/2” TRU 8 7/8 | 6 1/4″ | 4 ½ REG PIN |
8 7/8 TRU 12 ¾.” | 8” | 6 5/8 REG PIN |
ABOVE 12 ¾ ON REQUEST |
|
|
Contact our sales team for terms and conditions.
SIZE AVAILABLE | PRICE US DOLLAR |
3 3/4” | REQUEST |
3 7/8” TRU 4 1/2” | REQUEST |
4 1/2″ TRU 5.” | REQUEST |
5” TRU 6 1/2″ | REQUEST |
6 1/2” TRU 8 7/8 | REQUEST |
8 7/8 TRU 12 ¾.” | REQUEST |
ABOVE 12 ¾ | REQUEST |
The mill head is dressed with a tungsten carbide ally to provide a durable milling action.
The objective of the mill head feature; the mill head is used in combination with a packer retrieving tool to mill and retrieve packers in one trip.
SIZE AVAILABLE | BODY OD | CONNECTION |
5 7/8 TRU 6 ½ | 3 1/8”- 4 3/4″ | 2 3/8 REG P X 3 ½ REG P |
5 7/8 TRU 6 ½ | 3 3/4”- 4 3/4″ | 2 7/8 REG P X 3 1/2 REG P |
6 1/2″ TRU 8 7/8” | 4 1/4″- 6 1/4” | 3 1/2 REG P X 4 1/2 REG P |
Contact our sales team for terms and conditions.
SIZE AVAILABLE | PRICE US DOLLAR |
5 7/8 TRU 6 ½ | REQUEST |
5 7/8 TRU 6 ½ | REQUEST |
6 1/2″ TRU 8 7/8” | REQUEST |
The string is dressed with a tungsten carbide ally to provide a durable milling action.
The objective of the string feature is to allow entry into flattened, split, or generally misshapen casing and progressively mill it out to its original contour.
SIZE AVAILABLE | BODY OD | CONNECTION |
3 3/4” | 3 1/8” | 2 3/8 REG P x B |
3 7/8” TRU 4 1/2” | 3 3/4″ | 2 7/8 REG P X B |
4 1/2″ TRU 5.” | 4 1/4″ | 3 ½ REG P X B |
5” TRU 6 1/2″ | 4 3/4” | 3 ½ REG P X B |
6 1/2” TRU 8 7/8 | 6 1/4″ | 4 ½ REG P X B |
8 7/8 TRU 12 ¾.” | 8” | 6 5/8 REG P X B |
ABOVE 12 ¾ ON REQUEST |
|
|
Contact our sales team for terms and conditions.
SIZE AVAILABLE | PRICE US DOLLAR |
3 3/4” | REQUEST |
3 7/8” TRU 4 1/2” | REQUEST |
4 1/2″ TRU 5.” | REQUEST |
5” TRU 6 1/2″ | REQUEST |
6 1/2” TRU 8 7/8 | REQUEST |
8 7/8 TRU 12 ¾.” | REQUEST |
ABOVE 12 ¾ ON REQUEST | REQUEST |
Skirted mills are the consummate tools for milling plugged or ruptured tubular junk. The tool is dimensioned so that the skirt passes over the mis-shape pipe and over the fish, thus protecting the casing and ensuring that the junk mill keeps in contact with the top of the fish. The modular design of the 3-piece mill allows the replacement of individual parts instead of totally discarding the tool.
There are two options on the skirt, flat bottom and wavy bottom. Both the junk mill and skirt are dressed with tungsten carbide.
SIZE AVAILABLE | CONNECTION |
5 1/2” TUBING | 2 7/8 REG B UP |
6 5/8” CASING | 3 1/2 IF B UP |
7” CASING | 3 1/2 IF B UP |
9 5/8” CASING | 4 1/2 IF B UP |
13 3/8” CASING | 6 5/8 REG B UP |
Contact our sales team for terms and conditions.
SIZE AVAILABLE | PRICE US DOLLAR |
5 1/2” TUBING | REQUEST |
6 5/8” CASING | REQUEST |
7” CASING | REQUEST |
9 5/8” CASING | REQUEST |
13 3/8” CASING | REQUEST |
SIZE AVAILABLE | REQUEST |
Casing mills are heavy-duty tools designed explicitly for milling tubular / casing over a long distance. The mills are all supplied with a fish neck as standard, and stabilizer wear pads can be incorporated if desired.
All casing mills are dressed with tungsten carbide insert to ensure rapid removal of casing / tubular. The inserts are designed to create small cuttings for an excellent and easy hole cleaning,
SIZE AVAILABLE | CONNECTION |
7” CASING | 4 ½ IF B X 3 1/2 IF PIN |
9 5/8” CASING | 6 5/8 REG B X 4 1/2 IF PIN |
13 3/8” CASING | 7 5/8 REG BOX X 6 5/8 REG PIN |
ABOVE 13 3/8” ON REQUEST |
|
SIZE AVAILABLE | PRICE US DOLLAR |
7” CASING | REQUEST |
9 5/8” CASING | REQUEST |
13 3/8” CASING | REQUEST |
ABOVE 13 3/8” | REQUEST |
HYDRAULIC SET WHIPSTOCK
- One trip system
- Hydraulic set
- 2 TRU 3-degree whip face angle
- Receivable by hook or die collar
- Packer-type anchor
- Orientation by MWD or gyro
SIZE AVAILABLE | STANDARD WF ANGLE |
7” CASING | 2 |
9 5/8” CASING | 2.5 |
13” CASING | 3 |
For full technical specifications and prices, contact our sales team.
TAPER TAP / DIE COLLAR
Die Collars and Taper Taps are either one-piece or simple assembly fishing tools. The absence of moving parts makes these tools among the most trouble-free, easily operated fishing tools, providing years of useful life.
Each size is carefully designed to have ample strength for its catch range and has a slow taper to ensure the deep, case-hardened wickers obtain maximum contact area with the fish. Both Die Collars and Taper Taps are precision machined from heat-treated alloy steel. The buttress form wickers have ample material for machining and may be supplied Left or Right Hand. Fluted wickers are standard, but non-fluted wickers can be supplied on request. Removable guides, nominal or oversized, are provided in the cut-lipped style.
Tools are made on customers’ requests. A wide variant of catch range and body OD’s are available. Contact our sales team.
